Dataset Preview Features

Recline.js

DKAN, like CKAN, offers an integration with the Recline Javascript library. Recline allows site visitors to preview tabular data visually. The preview works for CSV and XLS* files that are uploaded to the DKAN site or hosted remotely and linked to, as well as for data stored in DKAN’s local SQL-based datastore.

Grid View

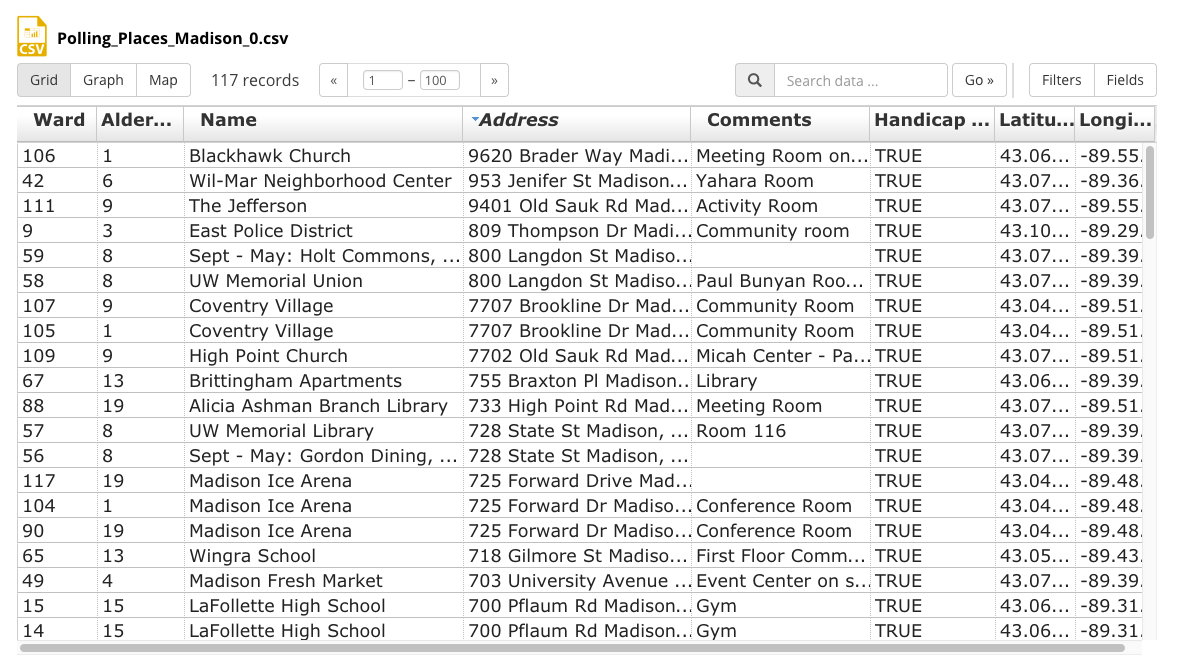

All tabular data can be rendered as spreadsheet-style rows and columns:

../../_images/csv-preview.png

*For xls files be sure to fill in the format field to see previews of the data

../../_images/xls-format.png

Map View

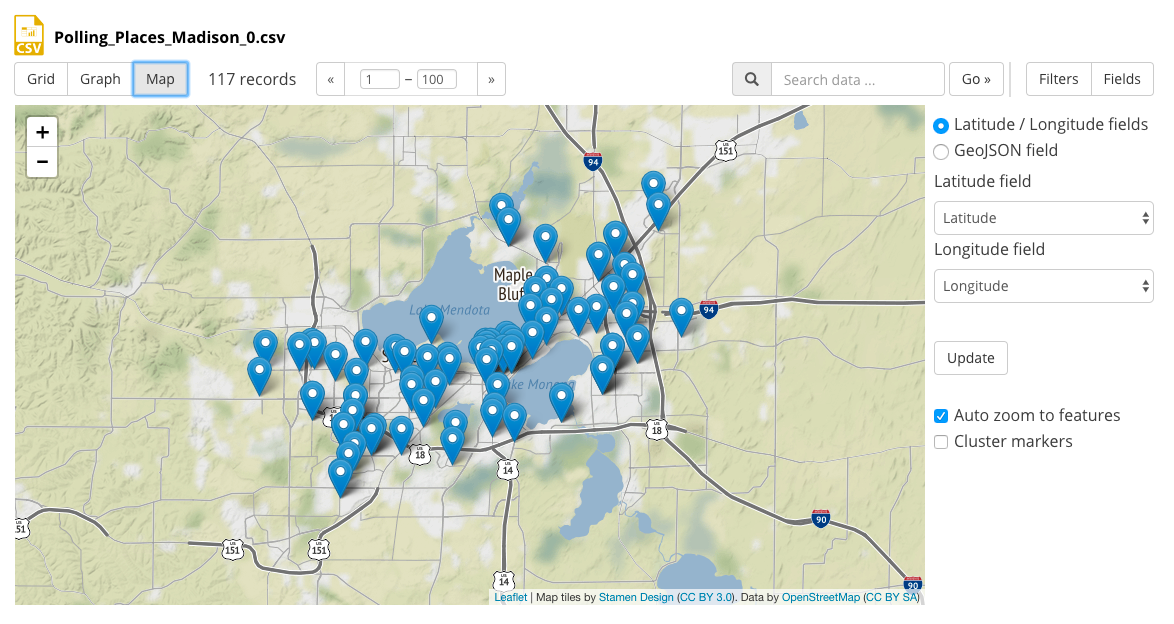

Visitors can preview data that contains either coordinates or GeoJSON on a Leaflet.js -based map:

../../_images/map-preview.png

Graph View

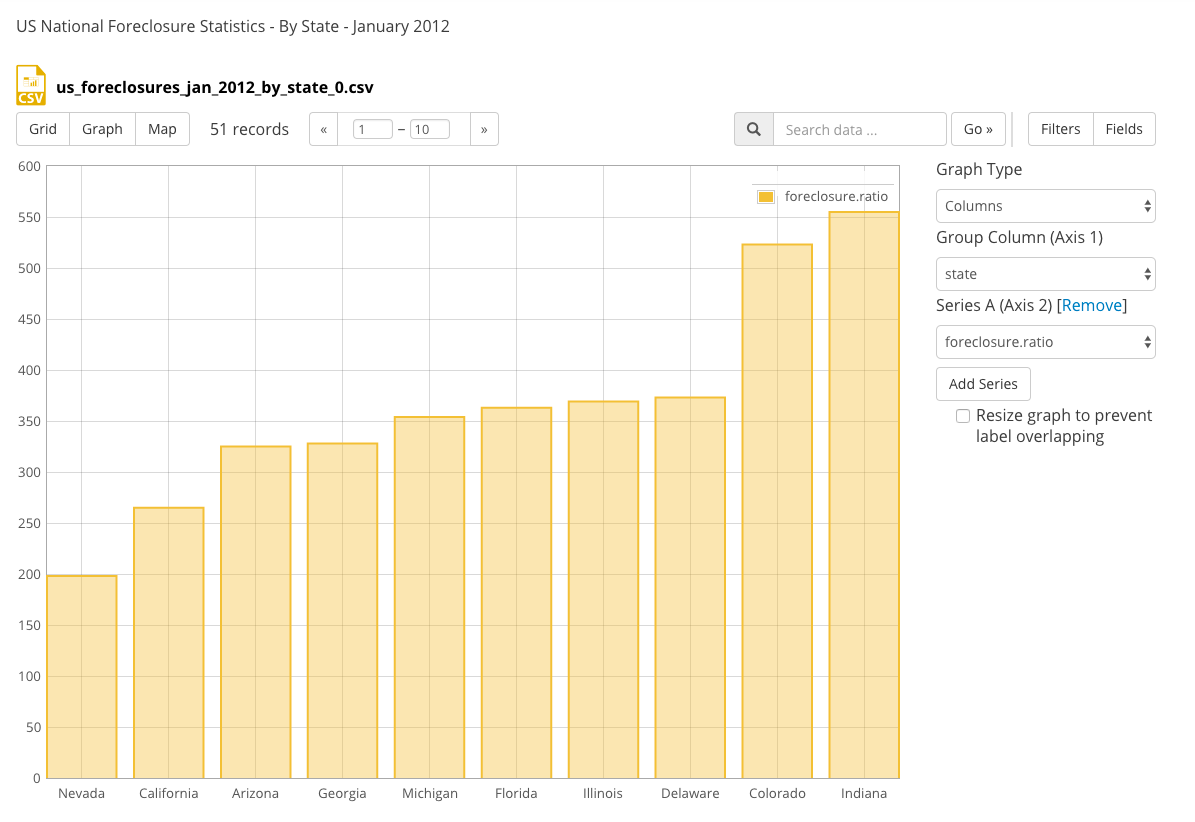

If enabled, visitors can chose one column of your data as an X-axis, one or more as Y-axis data, and preview your data as a bar, point or line graph.

../../_images/graph-preview.png

File size limits

Files can only be previewed if they are well formatted or small enough to render in the browser.

If files are too large to preview within 1 second you will get the following message “File was too large or unavailable for preview.”

Files that are too large to preview in the browser can be previewed by adding them to the datastore. Once a file is in the datastore the preview is only asking for the first 25 rows of the data. Thus large datasets can be previewed.

Additional preview support

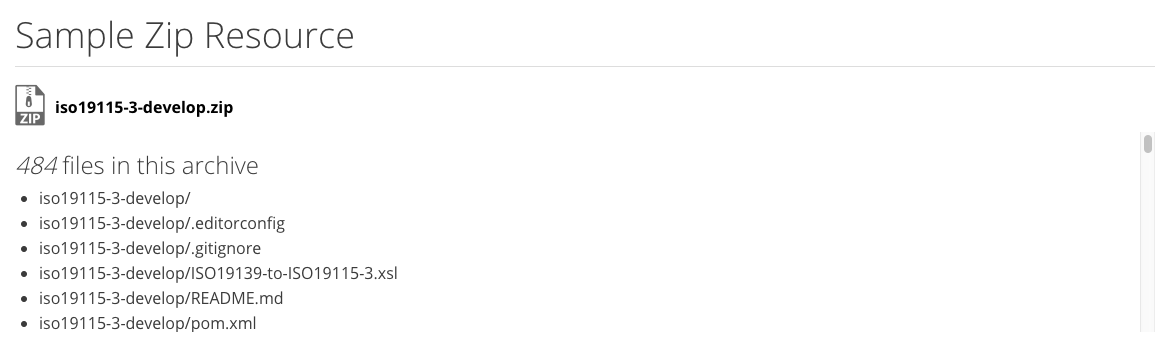

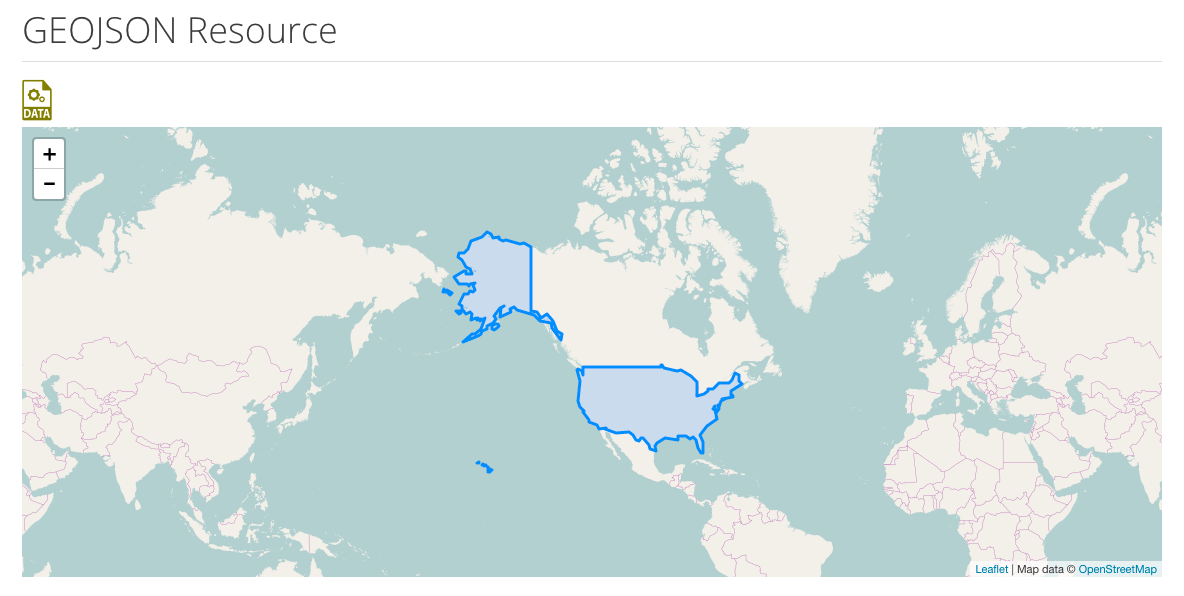

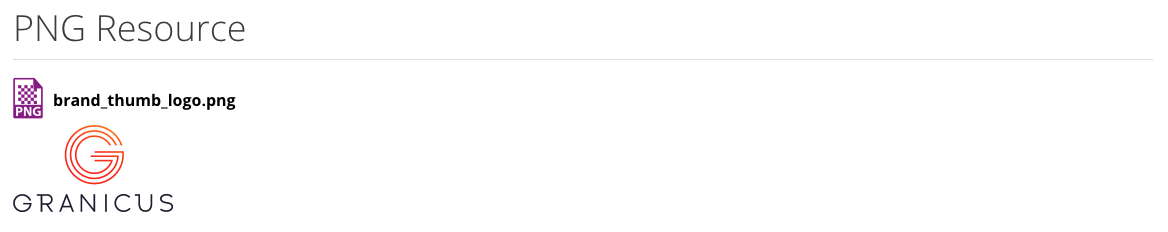

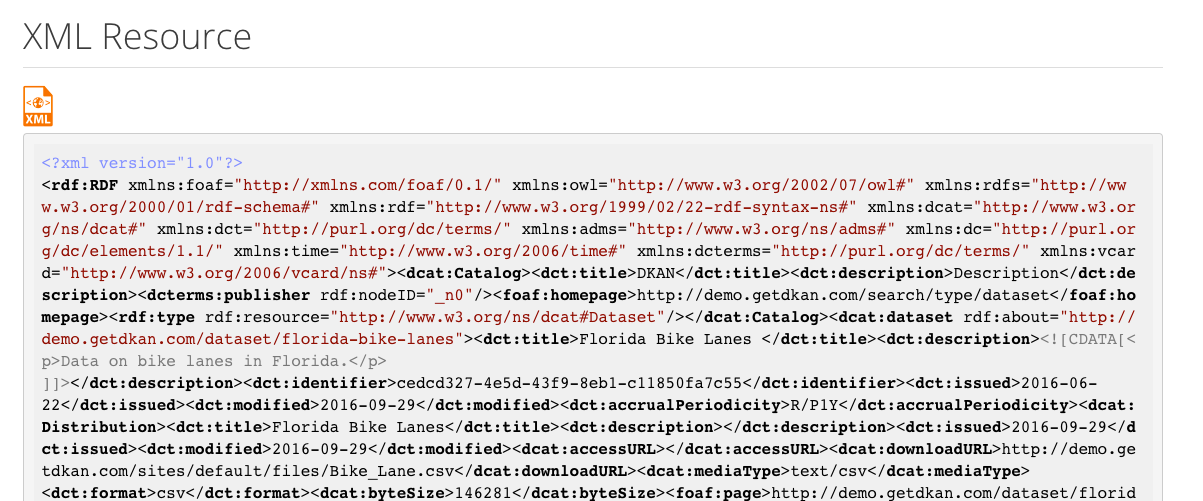

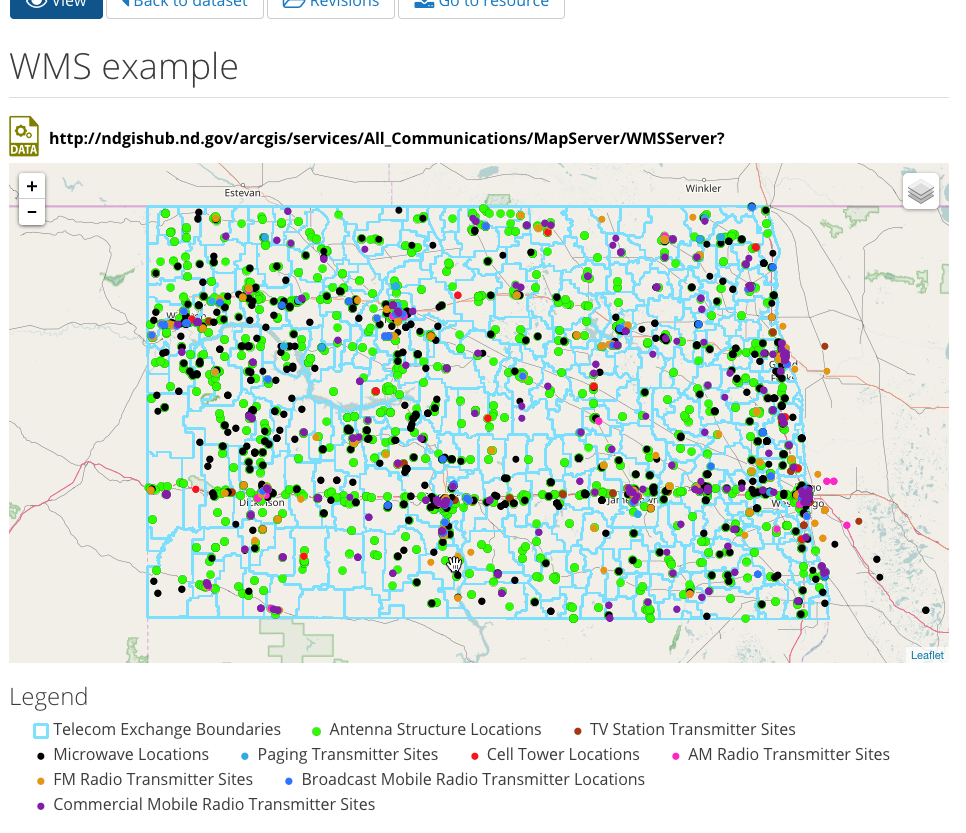

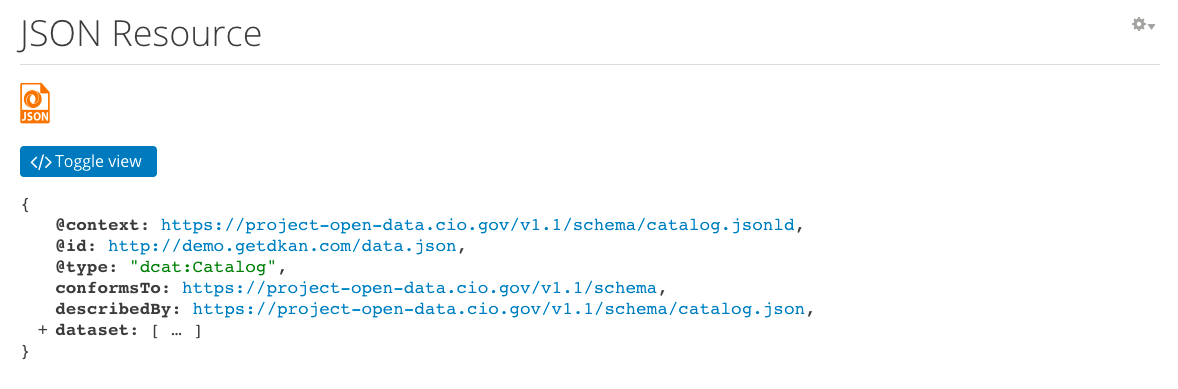

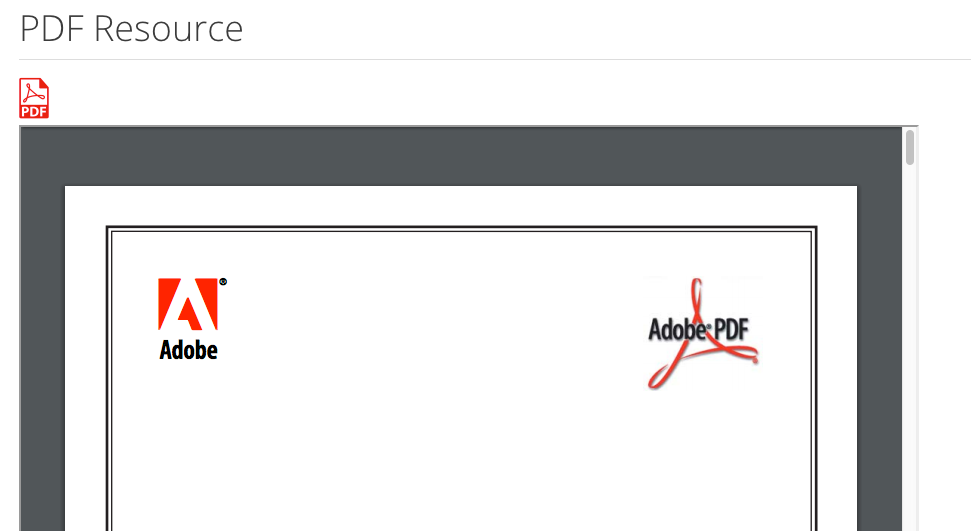

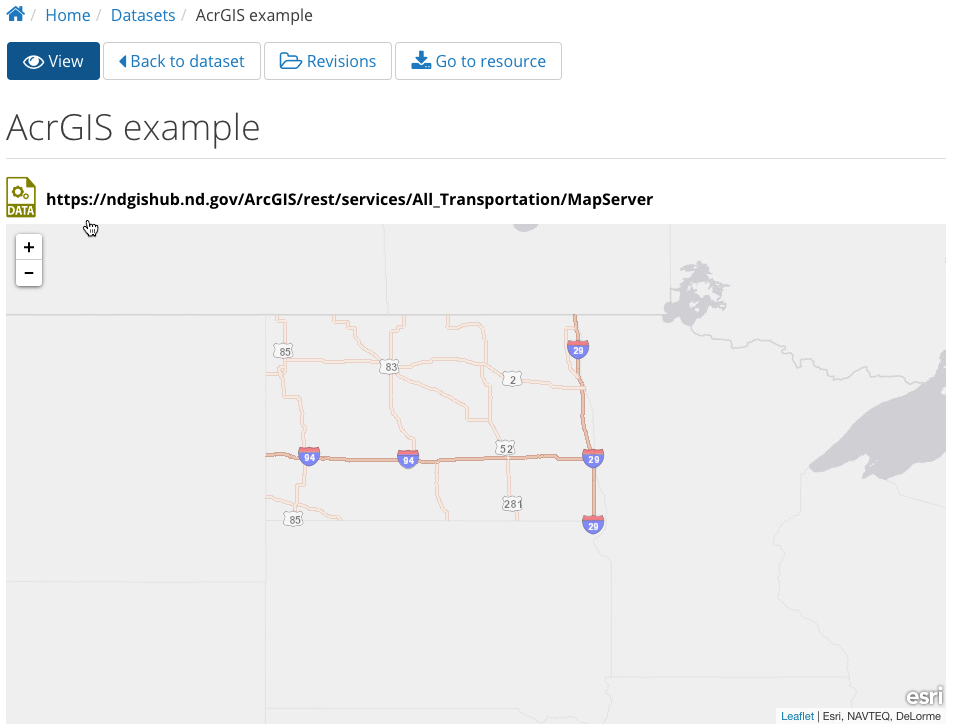

Support has been added for previewing JSON, geojson, XML, ArcGIS REST, WMS, images, PDF, and ZIP* files. *DKAN will display a list of contents for ZIP files uploaded as resources on datasets. (Unlike recline visual previews, the zip file preview does not work with remote linked files.)

../../_images/zip-preview.png
../../_images/xml-preview.png
../../_images/pdf-preview.png
../../_images/json-preview.png
../../_images/geojson-preview.png
../../_images/png-preview.png
../../_images/arcgis-preview.png
../../_images/wms-preview.png

Preview Configuration

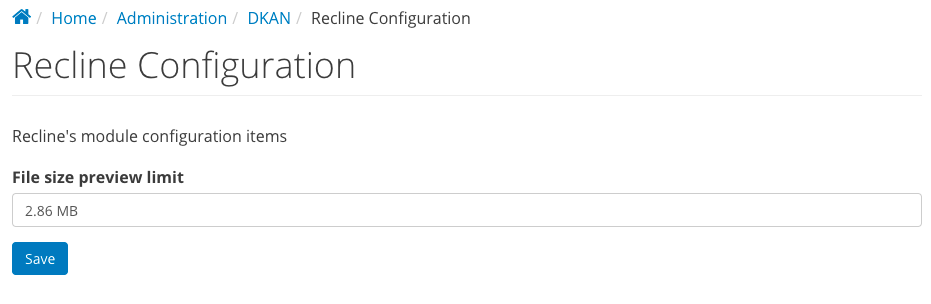

By default previews are available for resources with files below 3MB of size. However you can customize this limit in the recline configuration page (/admin/dkan/recline).

../../_images/recline-configuration.png

External Previews

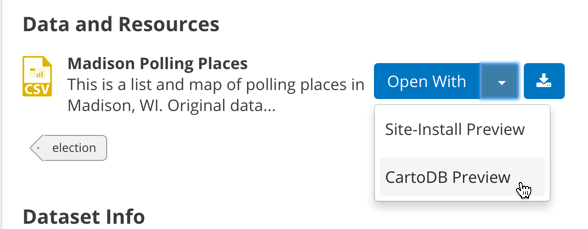

Starting with version 7.x-1.10, DKAN supports previewing/opening resources in external services that offer simple URL-based integrations. For instance, the CartoDB mapping service offers an Open in CartoDB service. Enabling this for CSV files will result in a dataset display like this:

../../_images/external-preview.png

External preview functionality can be enabled and configured in the “DKAN Dataset Previews” administration page (/admin/dkan/dataset_preview).
